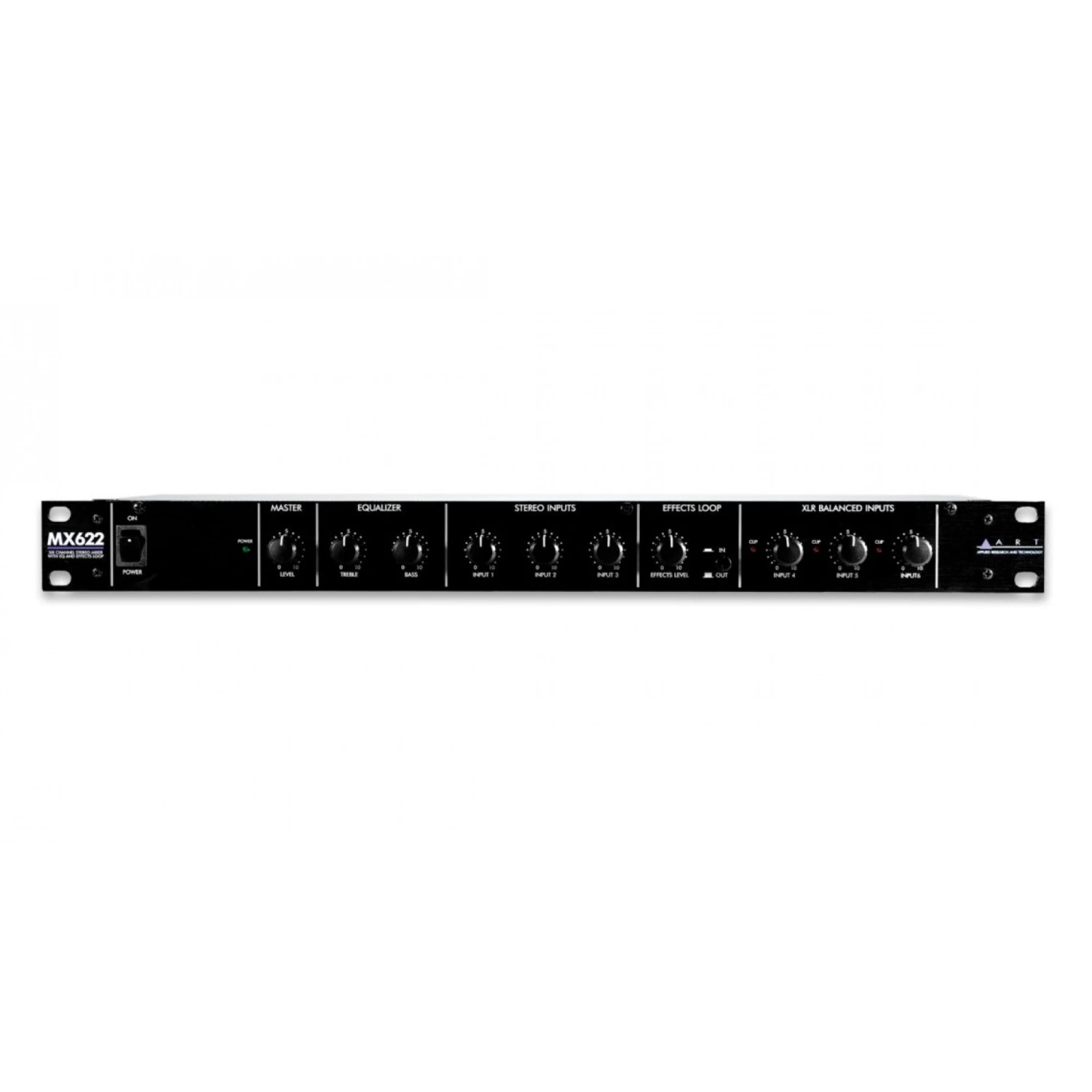

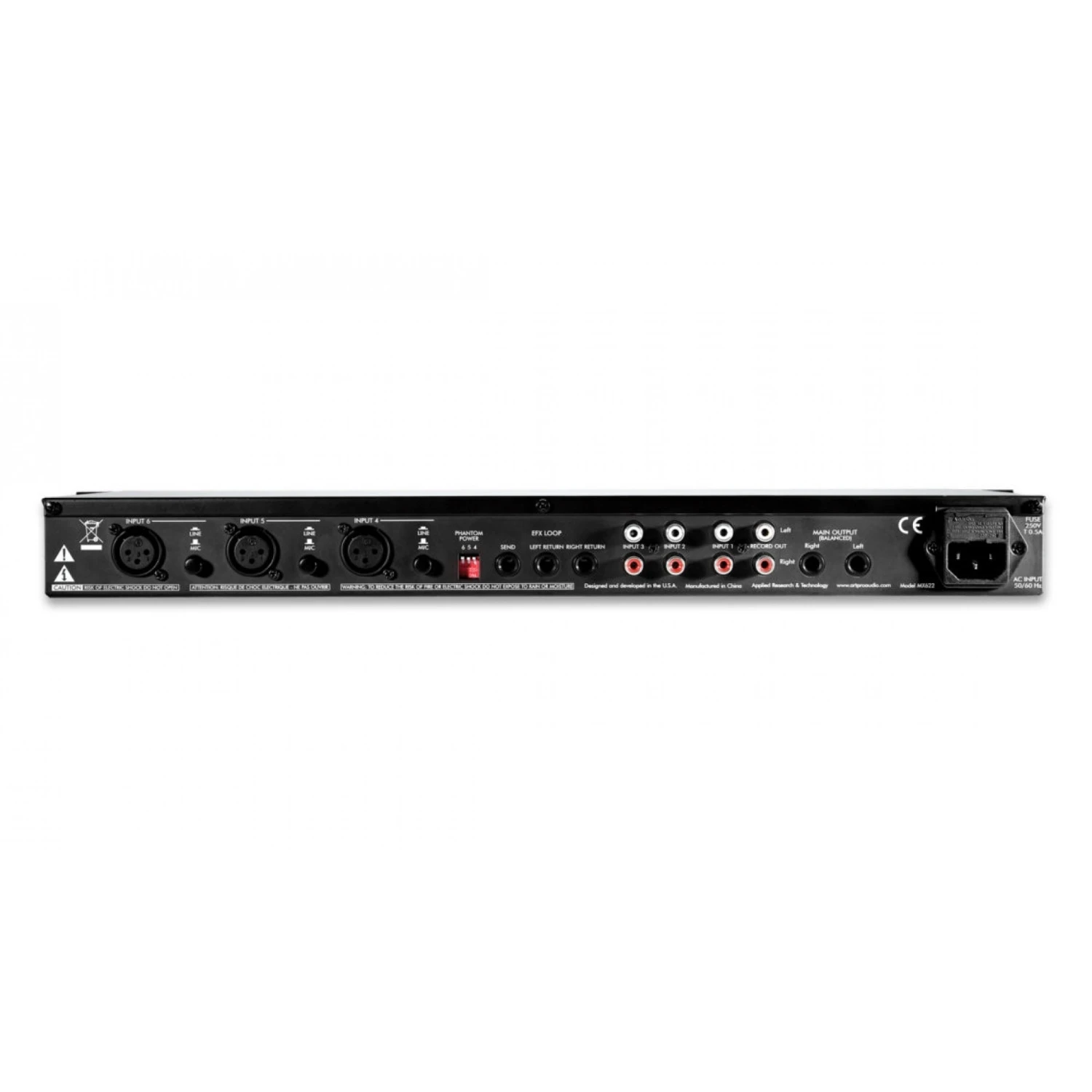

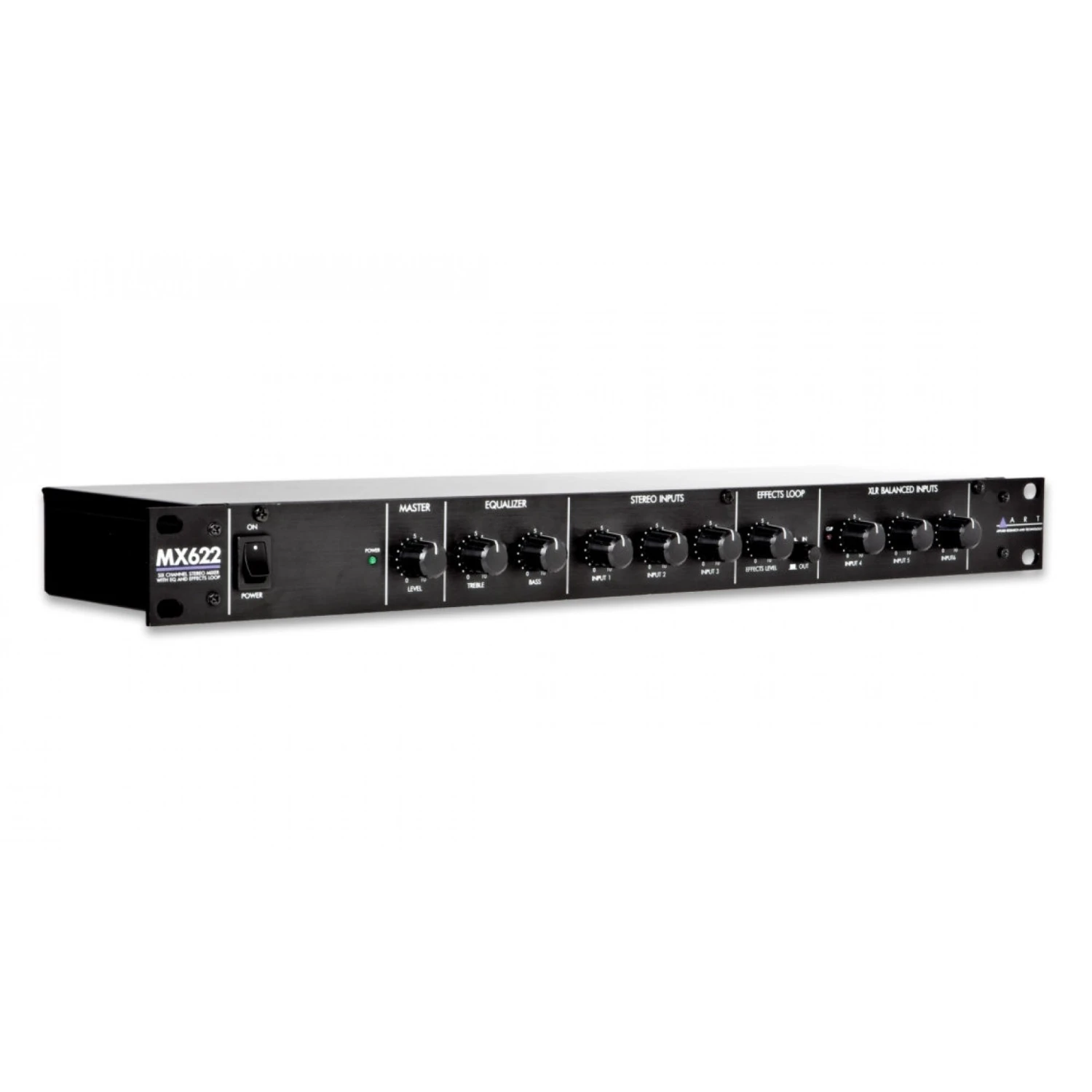

*art ART-MX622 Six Channel Stereo Mixer With EQ, Effects Loop And Balanced Outputs – Rack Mount
Original price was: $374.00.$96.99Current price is: $96.99.
- Your questions, our prompt answers.
- Shop with Peace of Mind
- SSL encryption, absolutely safe shopping
- Your Security is Our Promise
Overview
The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.
Key Features
- Three Balanced XLR Inputs Switchable Mic/Line Level
- Three Stereo RCA Inputs with Separate Level Controls
- Level Control and Clip Indicators
- Selectable 15-volt Phantom Power for Mic Channels
- Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
- Versatile Two-Band Master EQ
- Separate Stereo Record Outputs
- Effects Loop with Level Independent Level Control
Specifications
| Input Connections | XLR-F balanced (x3) 1/4-inch unbalanced (x2) 3 pairs stereo RCA (6 total) |
| Output Connections | TRS balanced 1/4-inch (x2) 1/4-inch unbalanced (x1) RCA (x2) |
| Input Impedance | 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns |
| Output Impedance | 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output |
| Total Harmonic Distortion | .01% Typical |
| Signal to Noise Ratio | > 90dB typical |
| Maximum Input Level | -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs |
| Maximum Output Level | +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output |
| Maximum Gain | 56dB/26dB mic/line / 26dB RCA inputs |
| Phantom Power | +15Volts DC (regulated / low noise) |
| Power Requirements | USA – 105 to 125 VAC / 50-60Hz, 15 W typical |
| Equalizer Range | +/-12dB @ 100Hz & 10kHz |
| Dimensions | 1.75″H x 19″W x 6.0″D (44.5mm x 483mm x 152mm) |
| Weight | 6.2 lbs (2.8 kg) |
| Series | No |
|---|---|
| SKU | ARTP_MX622CE |
| warehouse_eta | No |
| Colour | N/A |
| Warranty | Yes |
