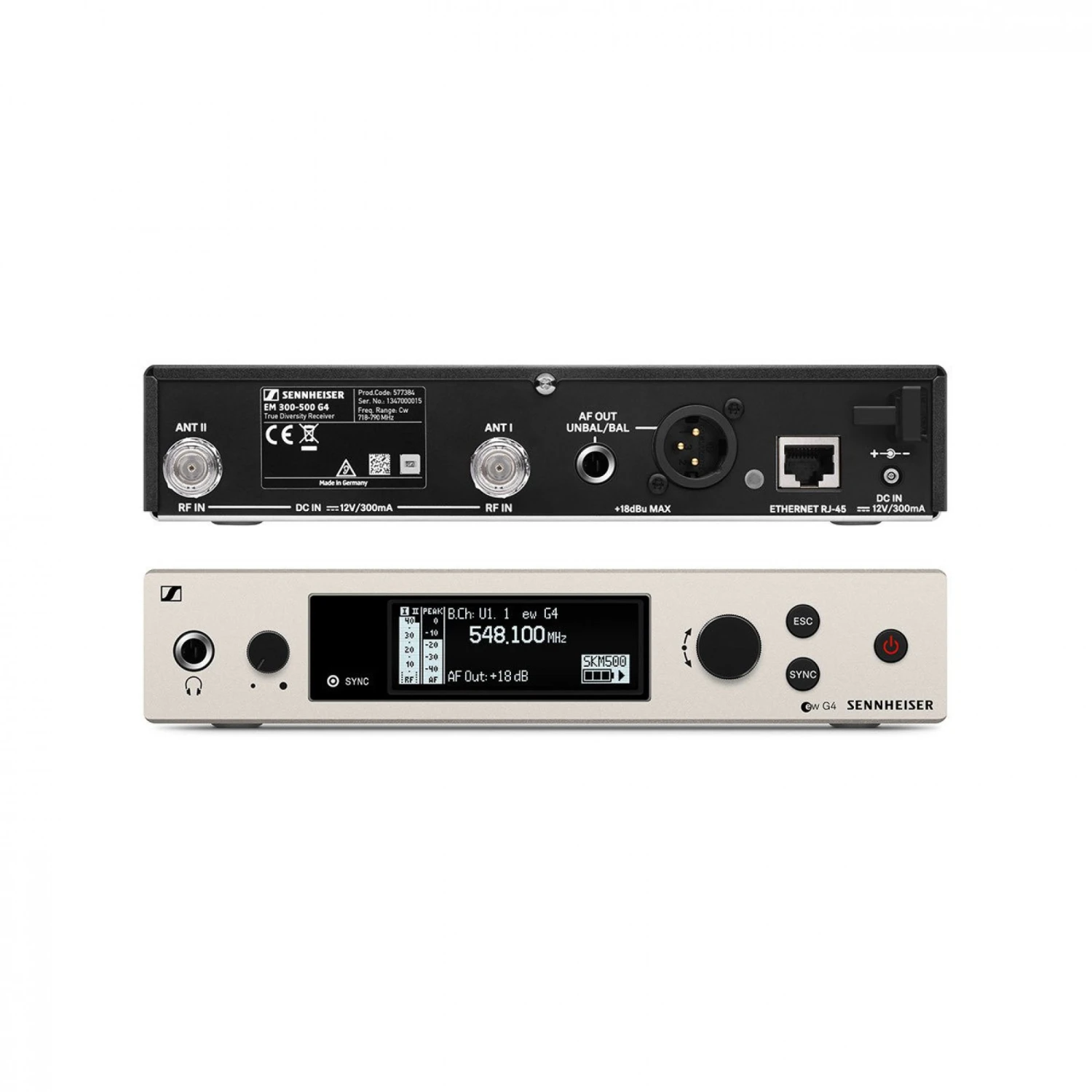

Sennheiser – EM 300-500 G4-GBW

Sennheiser EM 300-500 G4-GBW (Made in Germany)

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.

Key Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display

• Easy to use, fast setup time

• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

• Up to 88 MHz bandwidth, up to 32 channels

• Increased RF output power (10/30/50 mW)

• Transmission Range: up to 100 meters / 330 feet

• Compatible with wireless speaker system LSP 500 PRO

• RC (remote control) switch available for the bodypack transmitter

• Dimensions
  Approx. 202 x 212 x 43 mm
• Compander
  Sennheiser HDX
• THD, total harmonic distortion
  ≤ 0.9 %
• Weight
  Approx. 980 g
• Audio output
  6.3 mm jack socket (unbalanced): +12 dBu
  XLR socket (balanced): +18 dBu
• Signal-to-noise ratio
  ≥ 115 dBA
• Switching bandwidth
  up to 88 MHz
• Peak deviation
  ±48 kHz
• Nominal deviation
  ±24 kHz
• Modulation
  Wideband FM
• Power supply
  12 V DC
• Antenna connector
  2 BNC sockets
• Current consumption
  350 mA
• Adjacent channel rejection
  Typically ≥ 75 dB
• Intermodulation attenuation
  Typically ≥ 70 dB
• Receiving frequency
  Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity
  < 2.5 μV for 52 dBA eff S/N
• Squelch
  5 to 25 dBμV in steps of 2 dB
• Equalizer
  Preset 1: Flat
  Preset 2: Low Cut (-3 dB at 180 Hz)
  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range
  -10 °C to +55 °C
• Receiver Principle
  True diversity
• Blocking
  ≥ 75 dB
• Frequency range
  GBw: 606 – 678 MHz

What’s in the Box

• EM 300-500 G4 true diversity receiver
• 2 rod antennas
• power supply
• GA 3 rackmount set
• quick guide
• safety guide
• manufacturer declaration sheet
