Sennheiser EW-D SKM-S BASE SET (S1-7) Digital Wireless Handheld Base Set

Description

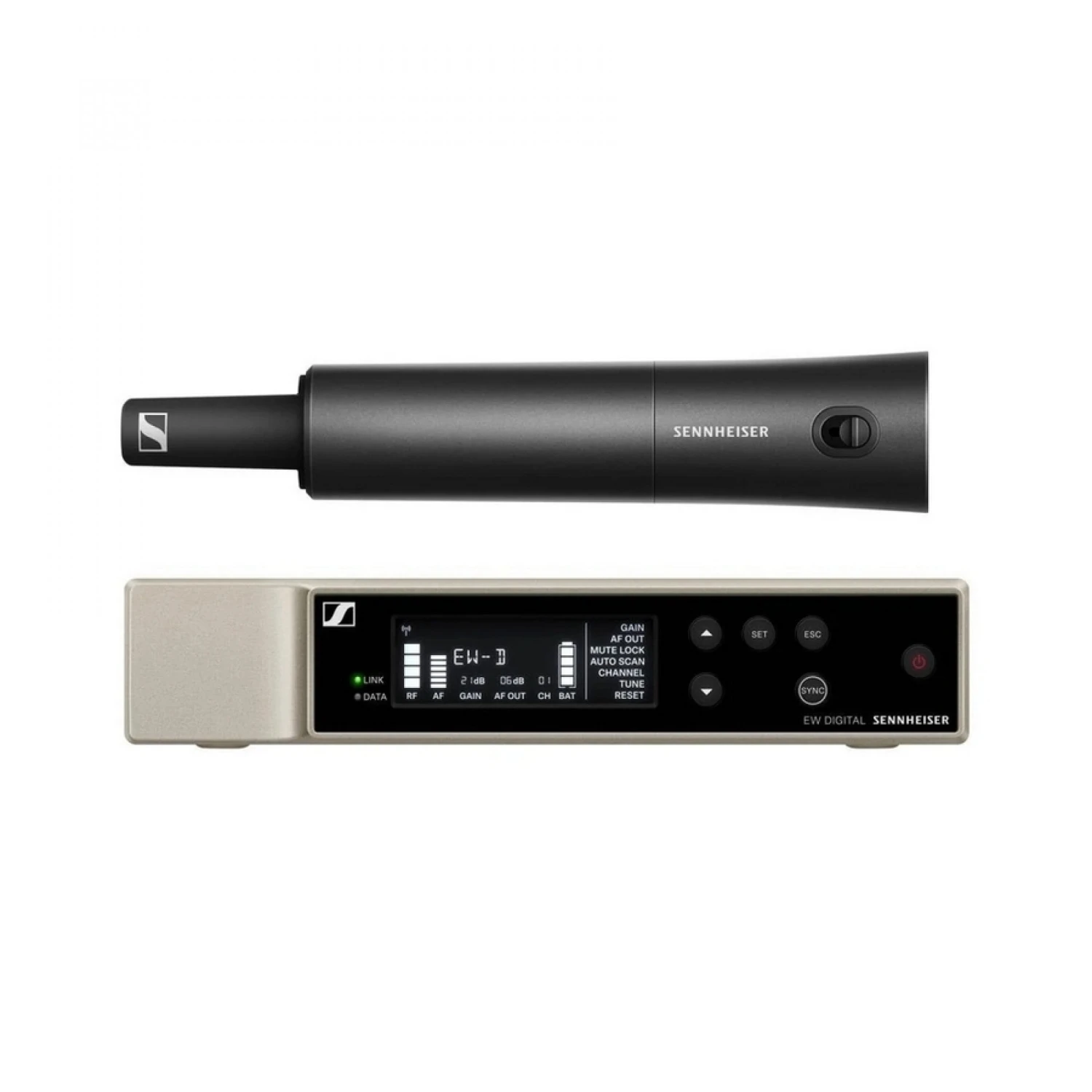

Digital wireless handheld base set. Includes (1) EW-D EM digital 19 1/2″ single channel receiver?, (1) EW-D SKM digital handheld transmitter with mute switch ? (microphone module sold separately), (1) MZQ1 microphone clip ?, (1) NT 12-5 CW+ power supply with country adapters?, (1) rack mount kit and AA batteries, frequency range: (606 – 662 MHz)

Base Set for digital wireless applications featuring sationary receiver and handheld transmitter for use with a wide range of Evolution Wireless Digital microphone heads.

Versatile and feature-rich digital wireless system for those who sing or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz along side each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Specifications

Frequency range

606.2 – 662 MHz
THD, total harmonic distortion

≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature

-10 °C – +55 °C (14 °F – 131 °F)
Operating relative humidity

5 – 95 % (non-condensing)
Audio frequency response

20 Hz – 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions

212 x 44 x 189 mm
Weight

approx. 1000 g (without antennas and power supply)
Current consumption

≤ 300 mA
Input voltage range

11 – 13 V ⎓
Audio output level

18 dBu max.
Transmission power

BLE: max. 10 mW EIRP

EW-D SKM-S

Dimensions

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)
Weight

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)
Power supply

2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack
Current consumption

< 300 mA
Input voltage range

2.0 – 4.35 V
Transmission power

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP
