Sennheiser – SKP 100 G4-B

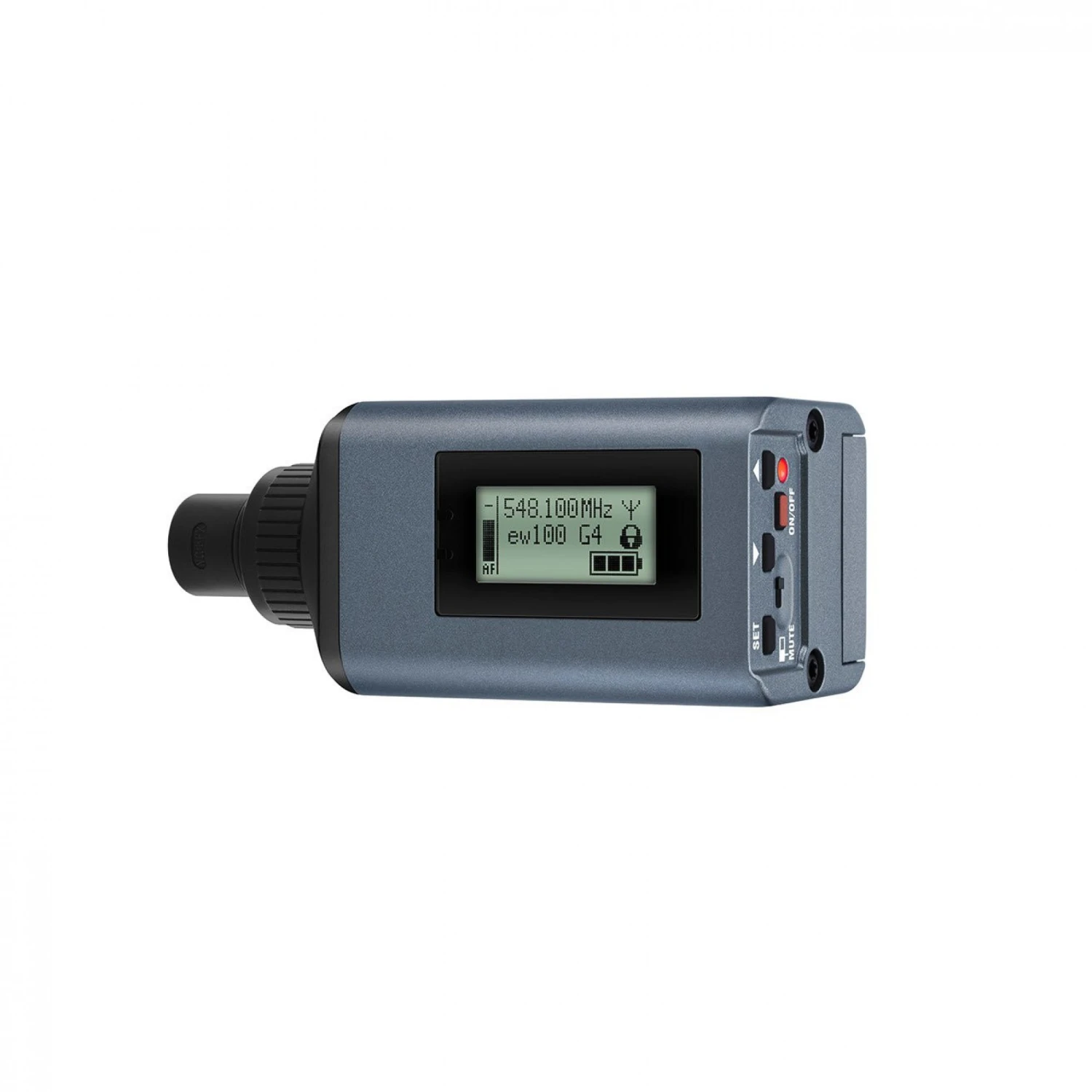

Sennheiser SKP 100 G4-B (Assembled in USA)

Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

Key Features

• Powerful plug-on transmitter, easily mounted on any kind of microphone

• Excellent sound and construction quality

• Easy to use and fast setup time

• Powerful and reliable wireless transmission

• Range: up to 100 meters / 330 feet

• Up to 8 hours of operation time

• Dimensions
  Approx. 105 x 43 x 43 mm
• Compander
  Sennheiser HDX
• THD, total harmonic distortion
  ≤ 0.9 %
• Weight
  approx. 195 g
• Signal-to-noise ratio
  ≥ 110 dBA
• RF output power
  Max. 30 mW
• Switching bandwidth
  up to 42 MHz
• Peak deviation
  ±48 kHz
• Nominal deviation
  ±24 kHz
• Operating time
  Typically 8 h
• Modulation
  Wideband FM
• Power supply
  2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption
  at nominal voltage: typ. 180 mA
  with transmitter switched off: ≤ 25 μA
• Input impedance
  68 kΩ, unbalanced
• Max. Input voltage
  3.3 Veff
• Powering
  3 V battery / 2.4 V rechargeable battery
• Transmission frequency
  Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response
  80 – 18,000 Hz
• Temperature Range
  -10 °C to +55 °C
• Frequency stability
  ≤ ±15 ppm

What’s in the Box

• SKP 100 G4 plug-on transmitter
• 2 AA batteries
• quick guide
• safety guide
• manufacturer declaration sheet

Find out more: https://en-au.sennheiser.com/plug-on-transmitter-microphone-skp-100-g4
