Sennheiser – SKP 500 G4-GBW

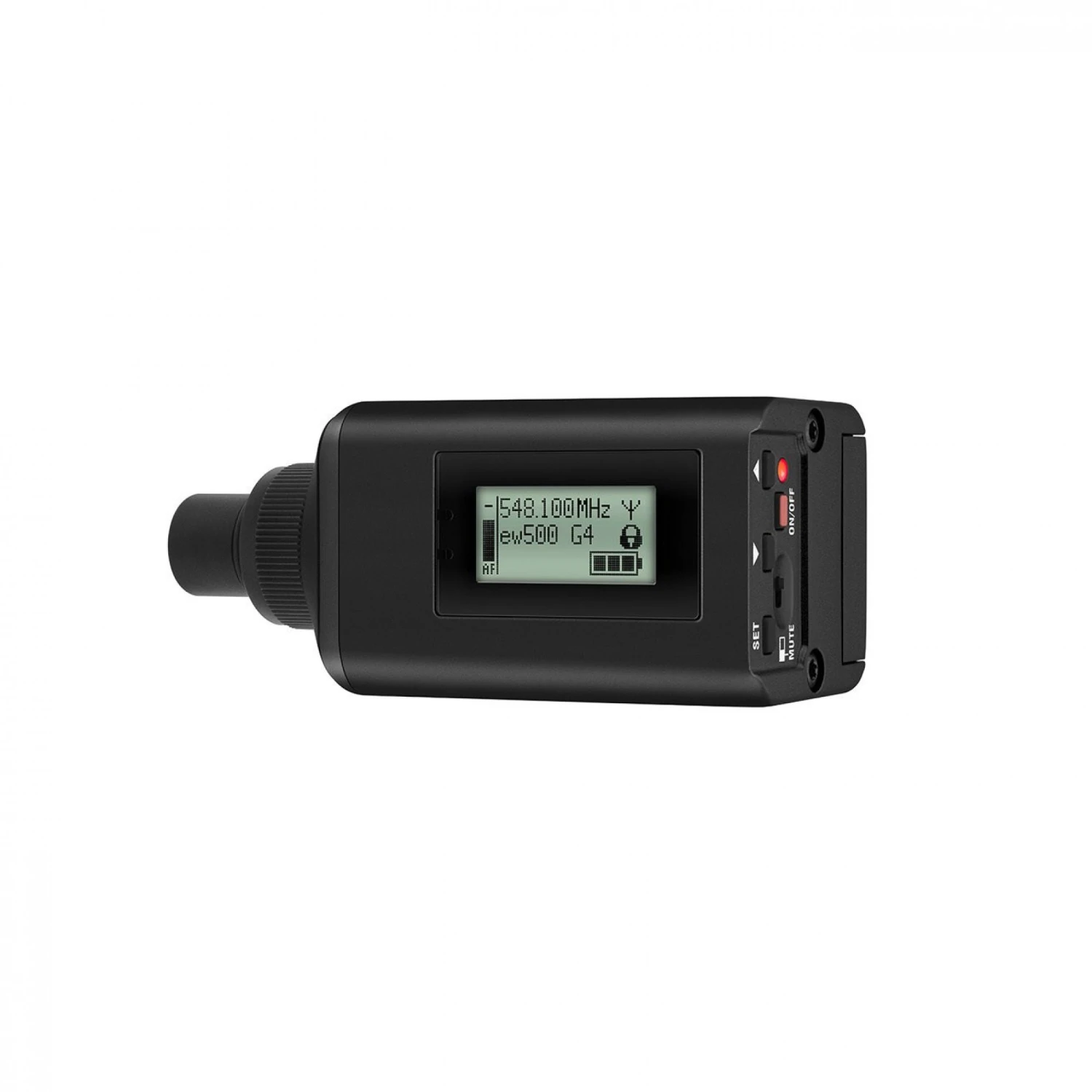

Sennheiser SKP 500 G4-GBW (Made in Germany)

Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.

Key Features

• Professional sound and excellent construction quality

• Easy to use and fast setup time

• Easy and flexible wireless synchronisation between transmitter and receiver via infrared

• Up to 88 MHz bandwidth, up to 32 channels

• Range: up to 100 meters / 330 feet

• Increased RF output power (10/30/50 mW)

• Up to 8 hours of operation time

• With 48 V phantom powering

• Dimensions
  Approx. 105 x 43 x 43 mm
• Compander
  Sennheiser HDX
• THD, total harmonic distortion
  ≤ 0.9 %
• Weight
  (incl. batteries) approx. 195 g
• Signal-to-noise ratio
  ≥ 120 dBA
• RF output power
  switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth
  up to 88 MHz
• Peak deviation
  ±48 kHz
• Nominal deviation
  ±24 kHz
• Operating time
  Typically 8 h
• Modulation
  Wideband FM
• Power supply
  2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption
  at nominal voltage: typ. 210 mA
  with transmitter switched off: ≤ 25 μA
• Input impedance
  68 kΩ, unbalanced
• Max. Input voltage
  6 Veff
• Powering
  3 V battery / 2.4 V rechargeable battery
• Transmission frequency
  Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
• AF frequency response
  80 – 18,000 Hz
• Temperature Range
  -10 °C to +55 °C
• Frequency range
  GBw: 606 – 678 MHz

What’s in the Box

• SKP 500 G4 pro plug-on transmitter
• 2 AA batteries
• POP 1 pouch with belt clip
• quick guide
• safety guide
• manufacturer declaration sheet

Find out more: https://en-au.sennheiser.com/plug-on-transmitter-microphone-wireless-skp-500-g4
